Camera car drivers are instrumental to safe and effective shot execution on a dynamic film set. The Driver View Monitor (DVM) was developed to give drivers real-time arm position and diagnostics feedback so they can focus on driving instead of the position/status of the arm.
NOW SHIPPING
Precision + Safety

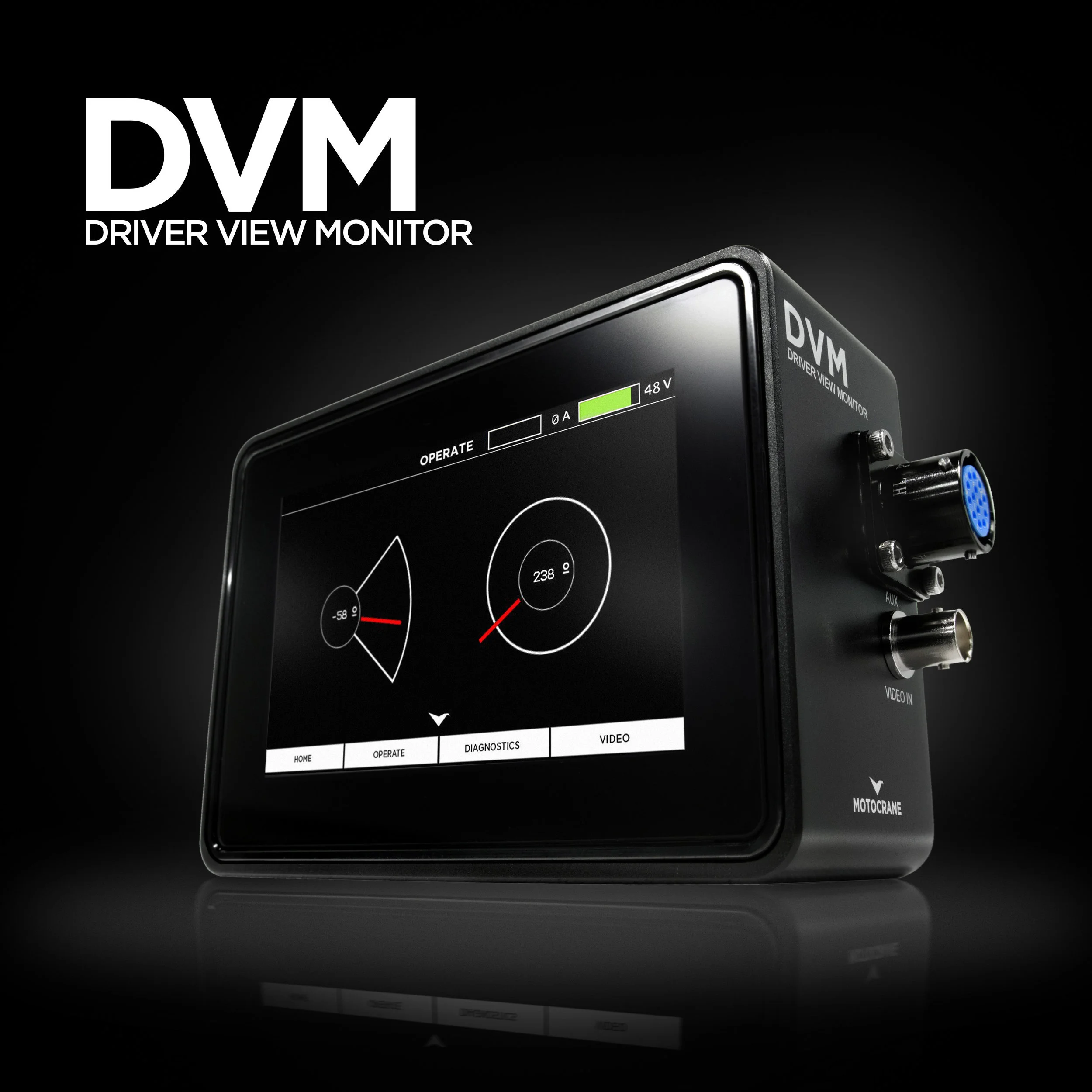

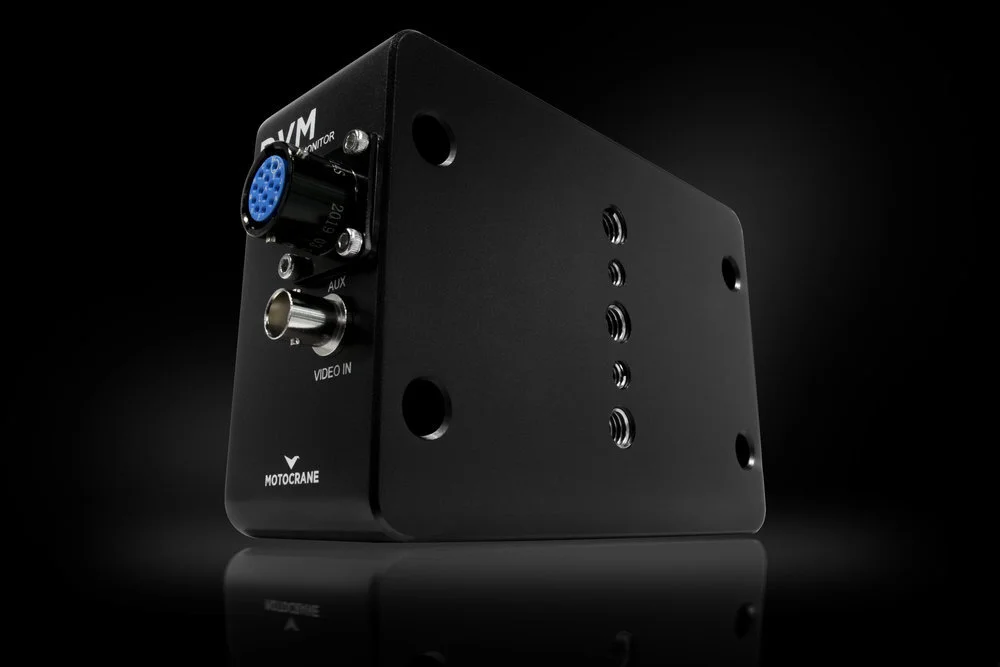

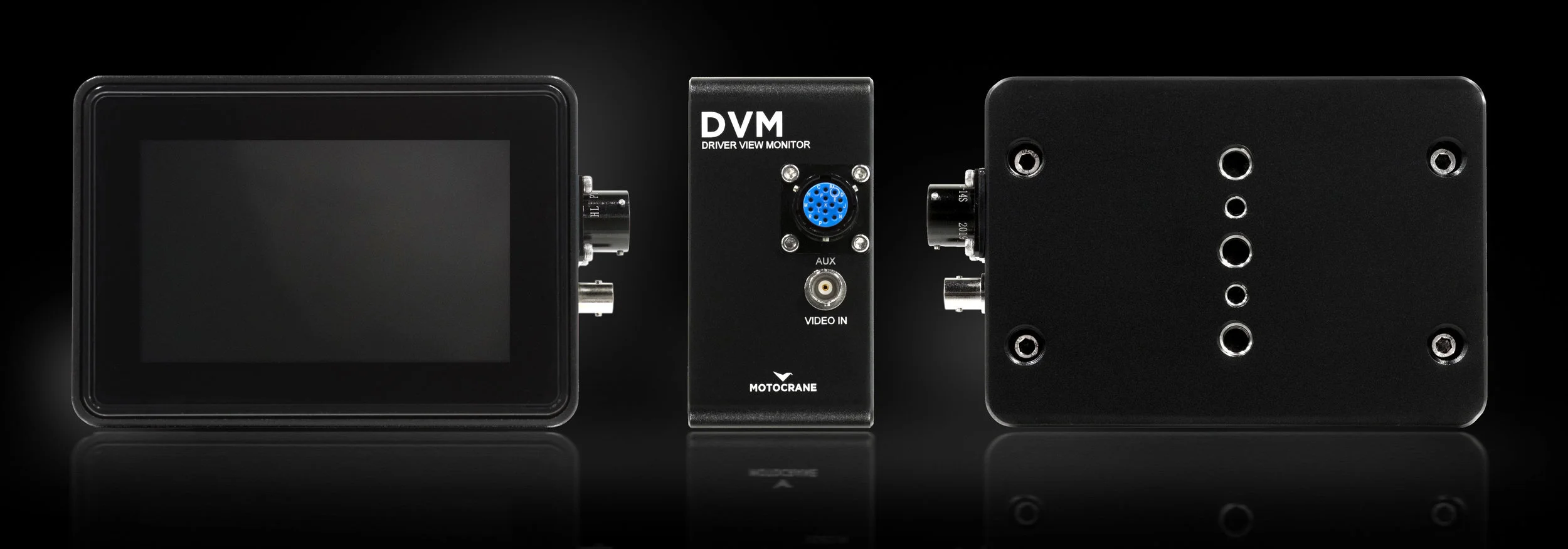

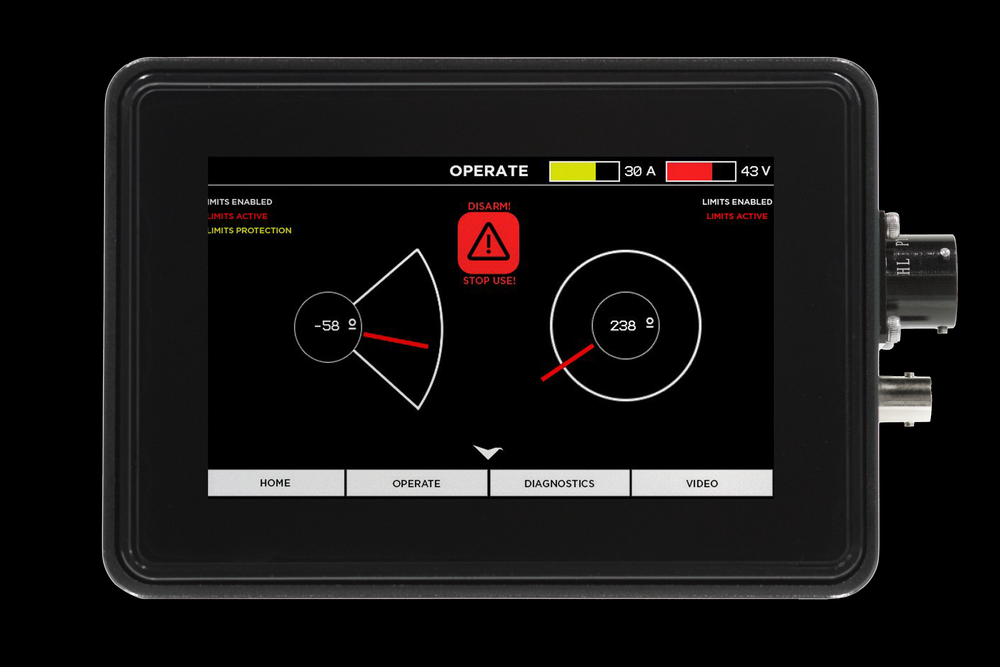

The Driver View Monitor (DVM) is a CAN-BUS device that provides real-time position, monitoring, and diagnostic feedback to the driver of the camera car. Featuring a 5” touch-screen display with adjustable brightness, the DVM housing is constructed from a single 6061 aluminum billet, and features steel 3/8-16 and 1/4-20 mounting threads for flexible placement around the cabin.
Robust Interface

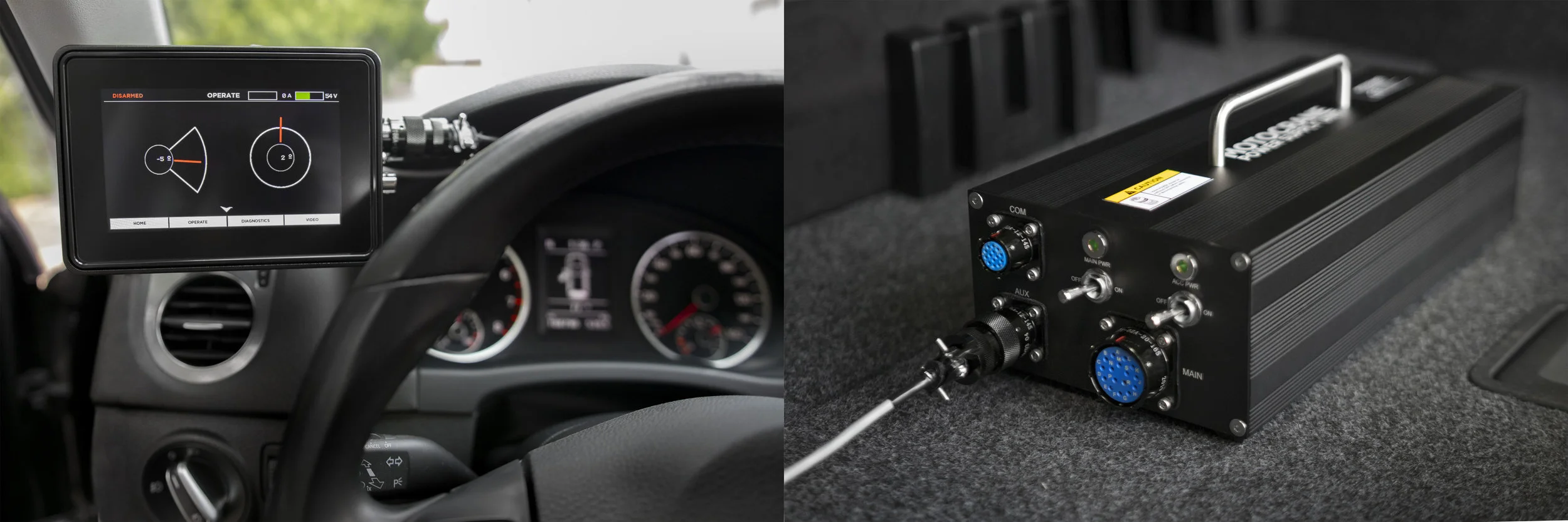

The DVM is plug & play, making use of the AUX port on the MotoCrane Power Supply Unit. Once plugged in, the DVM connects to the CAN-BUS network, reading and displaying all the same information available on the MotoCrane Extended and Compact Controllers.
Specifications
INPUT: CAN-BUS, NTSC SDI
Dimensions (LxWxH): 167mm x 55mm x 105mm
WEIGHT: 1.6lbs
CONSTRUCTION: 6061 Aluminum, Steel Thread
Includes 15’ cable. Does not include mounting hardware.
By purchasing you agree to our Terms of Sale, which can be found at motocrane.com/legal.
Now Available
DVM (Driver View Monitor)
