The most powerful 3-axis stabilized remote head in the world.

Uncompromised design, built for raw performance at the limits of cinema.

TITAN was built from the ground up with unwavering commitment to performance and robustness in its DNA. From a unified 6061-T6 billet aluminum mechanical structure to IP65-rated electronics and patented high torque slotless motors- every aspect of TITAN represents the bleeding edge of gyro stabilization.

The future is slotless

PRECISION

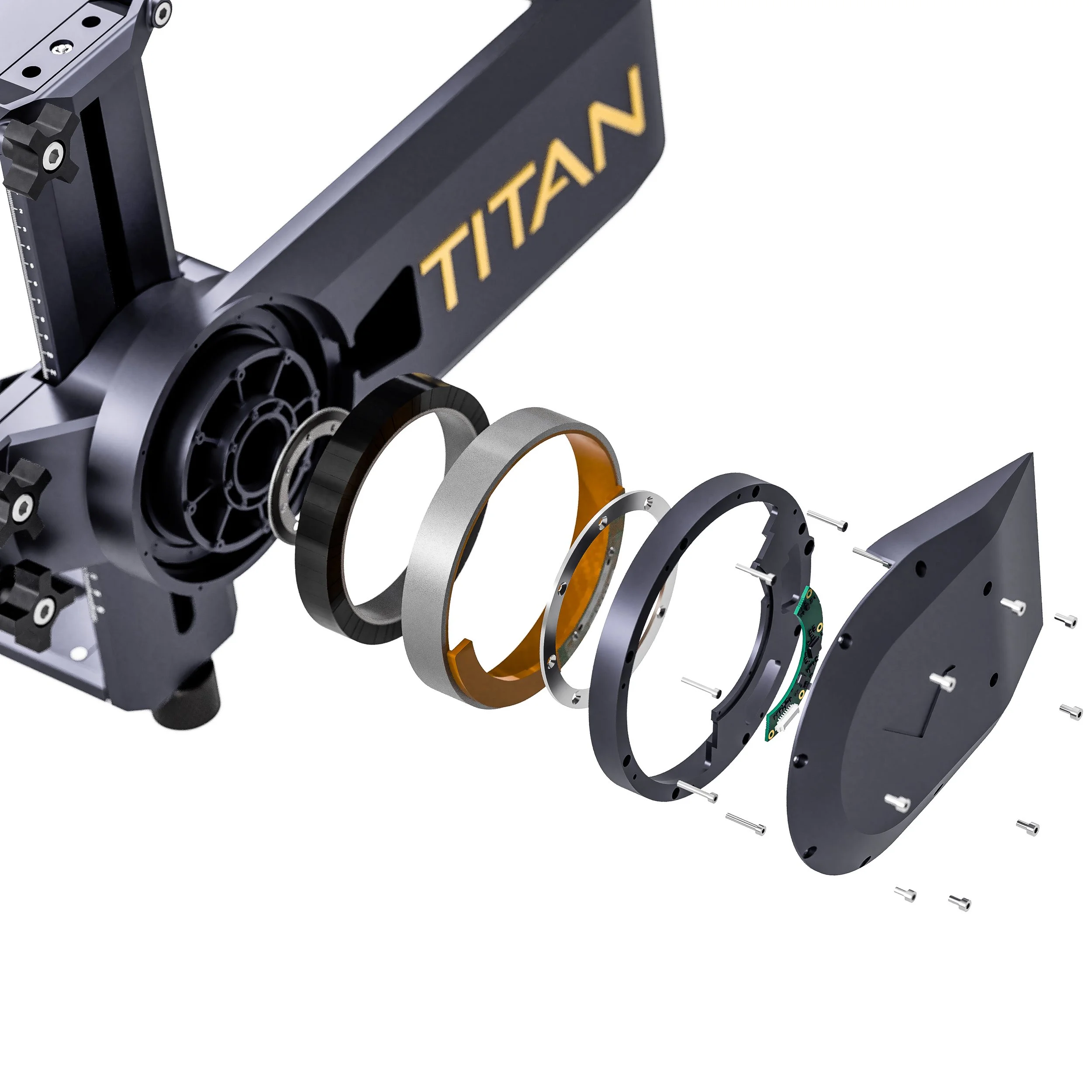

TITAN is the first stabilized remote head to utilize slotless motor technology. Unlike traditional brushless motors used in all other gimbals, slotless motors have zero-cogging for superior pointing accuracy.

POWER

With a massive 152mm/6in diameter, these 48V motors are also the most powerful to ever be used in a cinema gimbal. TITAN produces peak power figures in excess of 3000W.

Insane payloads

STRENGTH

A revolutionary mechanical structure built with ultra-large diameter bearings, axles, and a billet 6061-T6 aluminum frame. The result is superior stiffness and a class-leading payload capacity of 90lbs/41kgs.

F.O.G. standard

STABILITY

At the end of the day, it’s about stabilization. Like all other components of TITAN- only the best need apply. A Fiber Optic Gyro is included with TITAN as standard equipment so that your unit is performing at the highest levels possible right out of the box. The Fiber Optic Gyro is augmented by GPS satellite latching for rock-solid horizon during aggressive sustained cornering, acceleration and braking during vehicle tracking.

Built for battle

SPEED

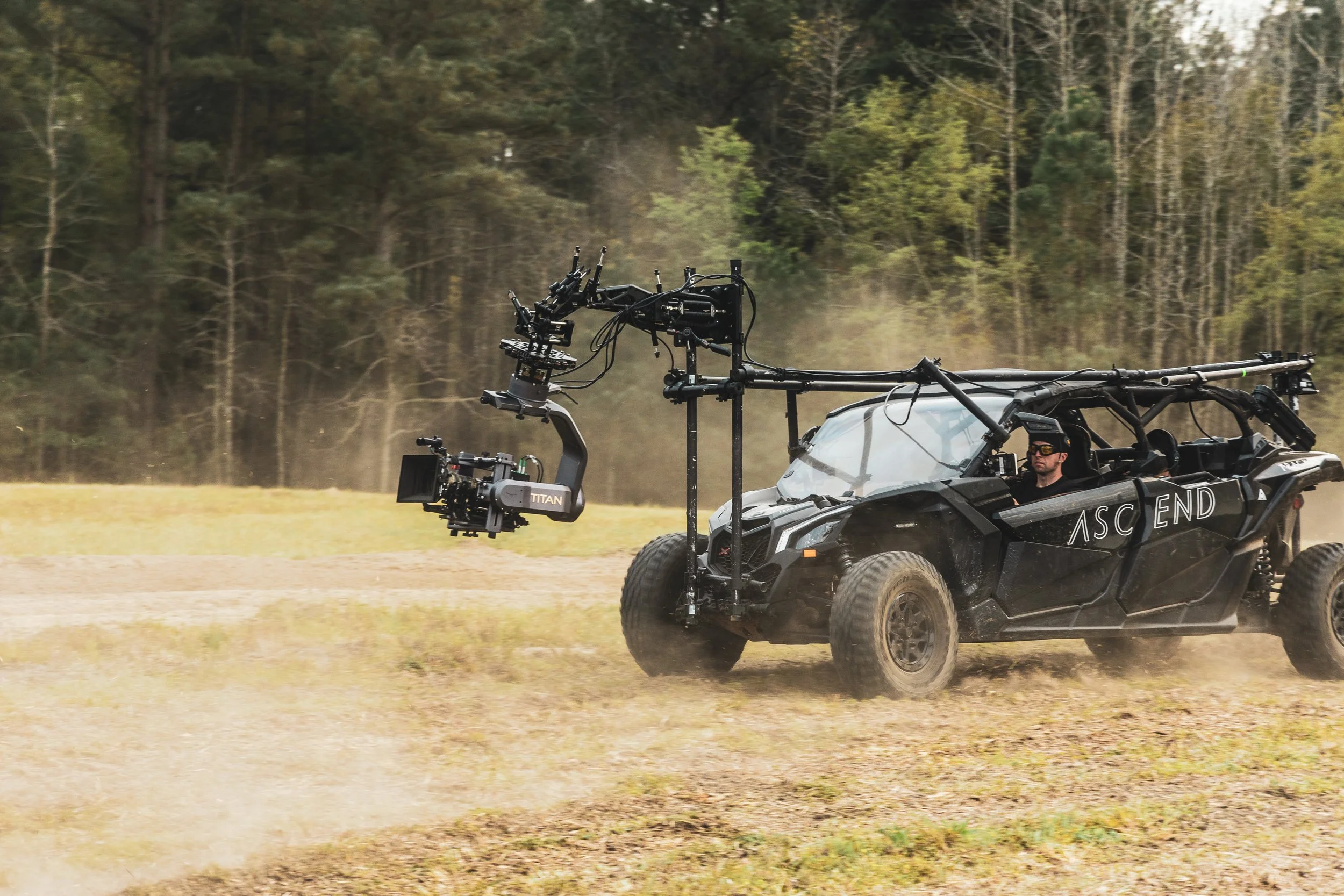

TITAN is optimized to perform in the most aggressive and dynamic applications. 18Nm (13ft-lbs) of peak torque allows for gimbal operation at over 100mph.

TERRAIN

We’ve designed for some of the largest safety margins in the industry, which means you can confidently push the gear farther and harder on aggressive off-road terrain.

Water resistant

IP65

A professional tool works rain or shine. TITAN has sealed rotating joints and electronics modules for an IP65 (water resistant) rating. This means the show can go on even when mother nature is not cooperating.

Controls your way

MODULAR

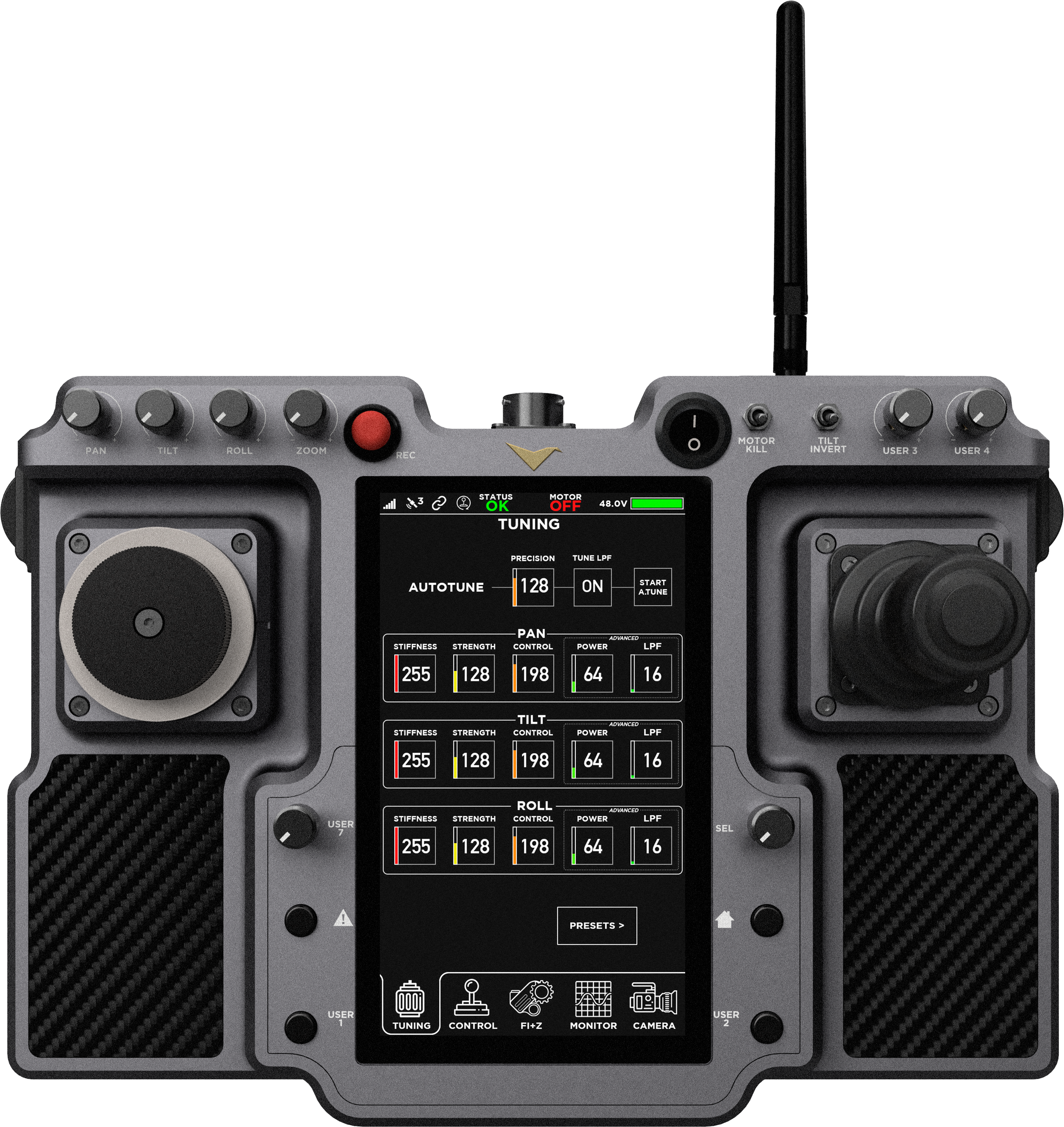

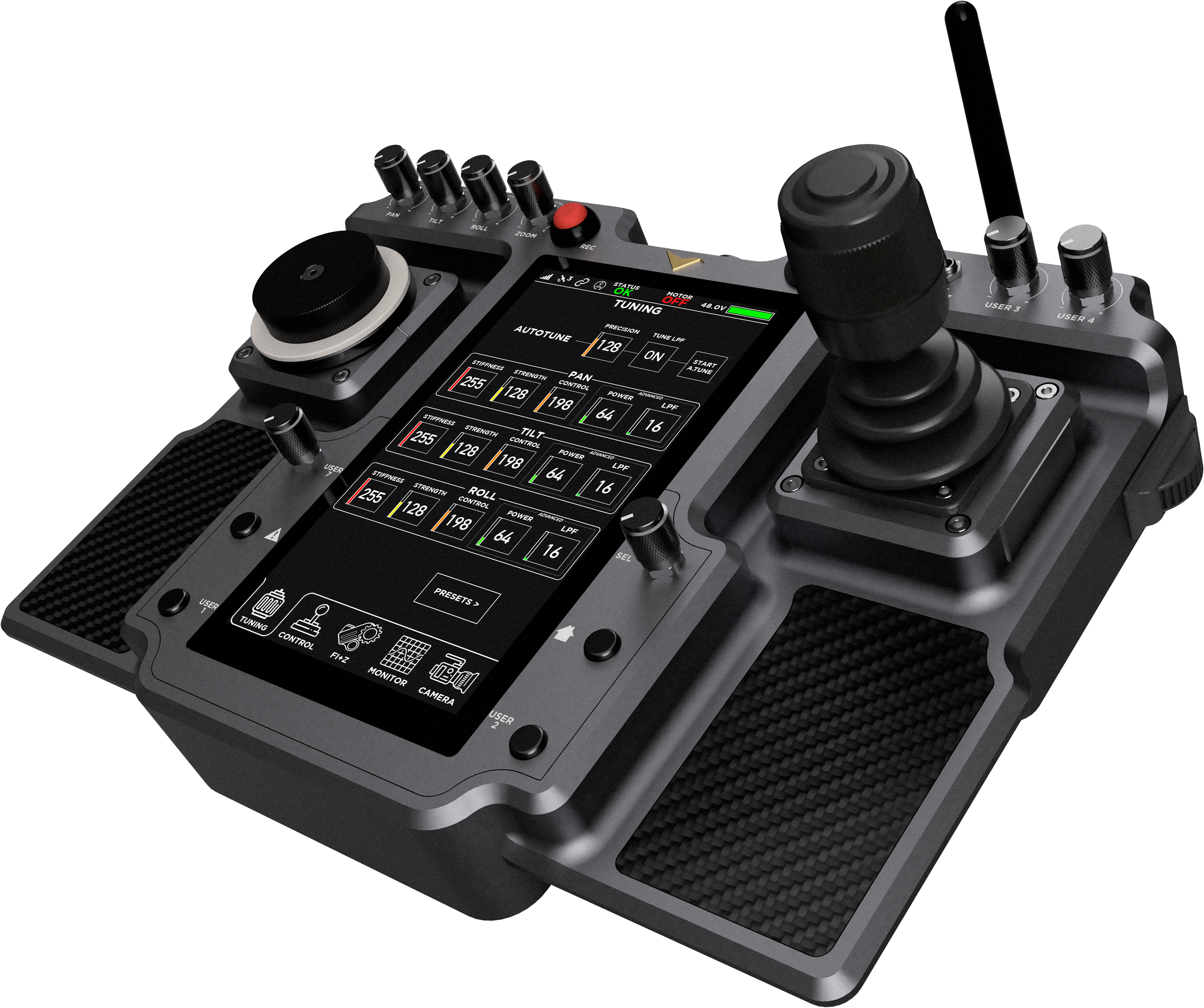

The TITAN Controller features an all-new, easy to navigate touchscreen user interface and user-swappable input modules. Operators can position the joystick(s) and/or focus wheel on the right or left-hand side as they see fit, and even install two single axis joysticks for discrete control of Pan and Tilt. A V-Mount battery sled is located on the rear for providing power during wireless operation.

HARDWIRED + WIRELESS

The TITAN controller can be plugged in directly to TITAN for hard-wired controls, or be used wirelessly via the standard 2.4Ghz radio. Wireless radios can also be swapped in minutes for installation of the Long Range upgrade (900/868Mhz) to achieve control distances over 1.8 miles (3km).

TITAN WHEELS

Available TITAN wheels are plug-n-play, and feature adjustable drag, speed, and interchangeable wheels (brass or aluminum) for customizing to each operators preference.

Unrestricted movement

SLIPRINGS

TITAN is the first 3-axis gimbal in the world equipped with 3x 12G-SDI sliprings for completely unrestricted & infinite movement on all 3 axes (including roll) while supplying video feed at up to 4K resolution and 60 fps.

Unlimited Pan

Unlimited Roll

Unlimited Tilt

Fully integrated

CAMERA + ACCESSORY

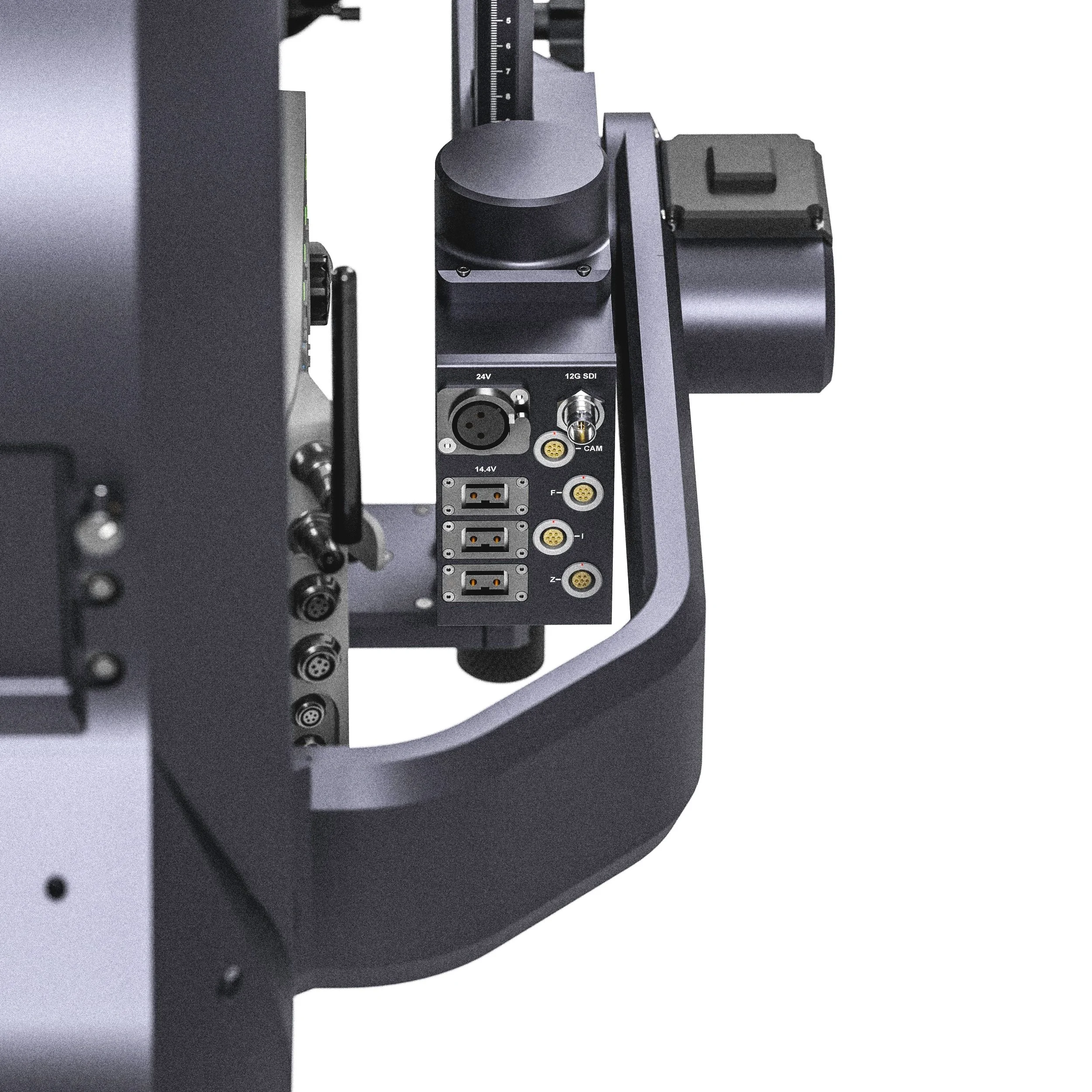

The TITAN IMU housing features built-in 3-pin (24V) XLR along with 3x D-Tap (14.4V) ports for providing over 250W of combined power to camera and accessories. Camera communication is also built-in for RCP/RCP2 and any serial accessories.

LENS CONTROL

Integrated 3-channel motor driver for control of Focus, Iris and Zoom via the TITAN Controller. Plug and play operation with available MotoCrane Lens Control Motors, and also all compatible with industry standard digital motors.

ALSO COMPATIBLE WITH:

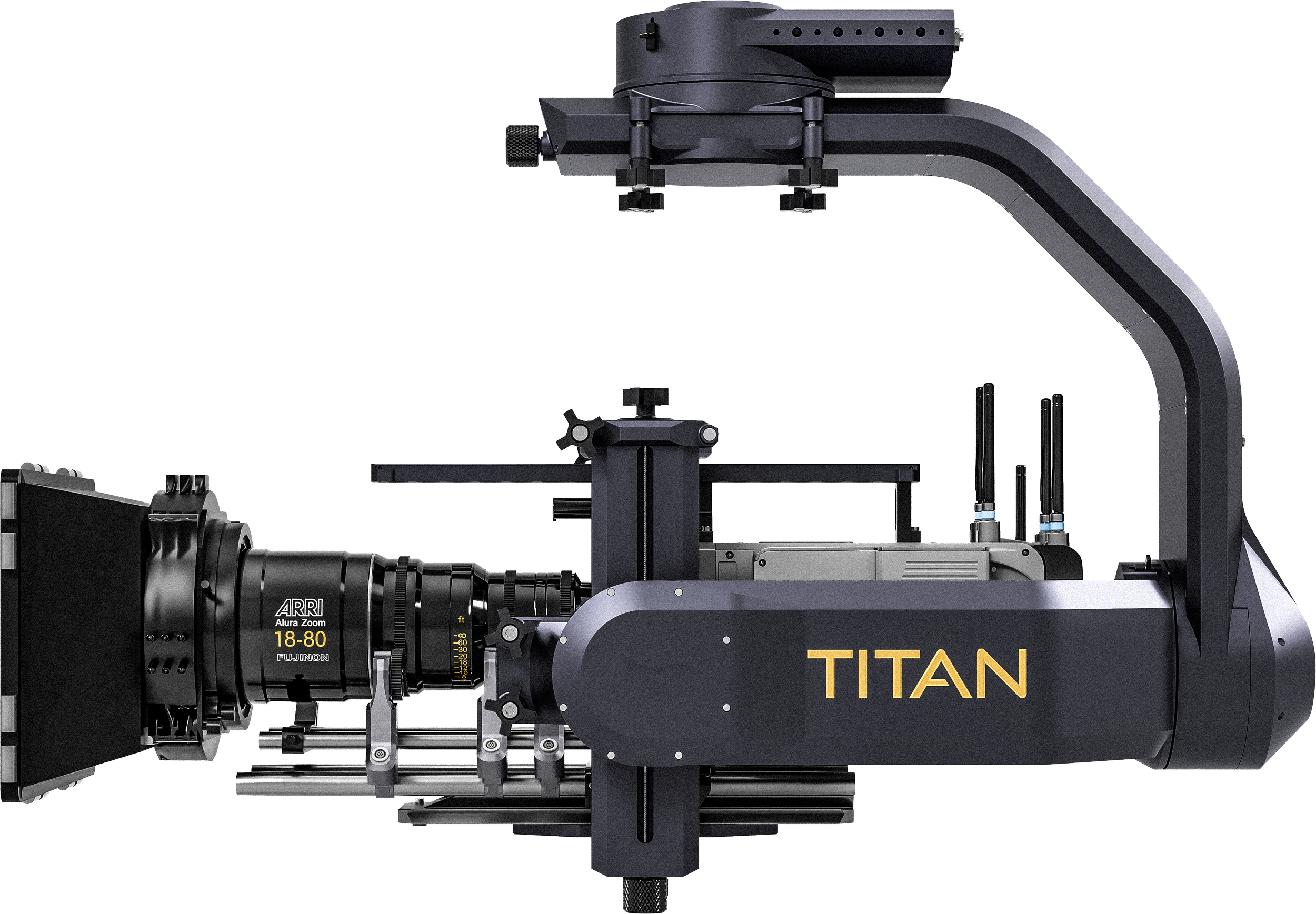

Technical Specifications

Mechanical

  • Construction: 6061-T6 Aluminum chassis

  • Maximum operational speed: 100+mph

  • Max motor torque: 18Nm

  • Max pan speed: 360º/sec

  • Maximum Payload Capacity: 90lbs/41kg

  • 70lbs/32kg recommended for dynamic tracking

  • Dry Weight: 44lbs/20kg

  • Weather rating: IP65 (water resistant)

  • Temperature rating: -30ºF - 120ºF

  • Gimbal Mounting: Mitchell mount adapter

  • Payload mounting: Arri dovetail

Electrical

  • System Voltage: 48V (42-52VDC)

  • Comms: CAN-BUS, hardwired + 2.4Ghz wireless

  • Long range radio: 900Mhz/868mhz for EU

  • Power output: 3x 14.4V Dtap (125W) + 1x 24V 3-Pin XLR (125W), 250W combined

  • Lens Driver: 3-channel, digital 7-pin LEMO
