TITAN LT Power, Broadcast integration.
LTB is the Broadcast variant of TITAN LT, building on the strength of the LT platform with the addition of Ethernet + Fiber passthrough and native Canon and Fujinon lens control via our new Servo Lens Controller accessory.

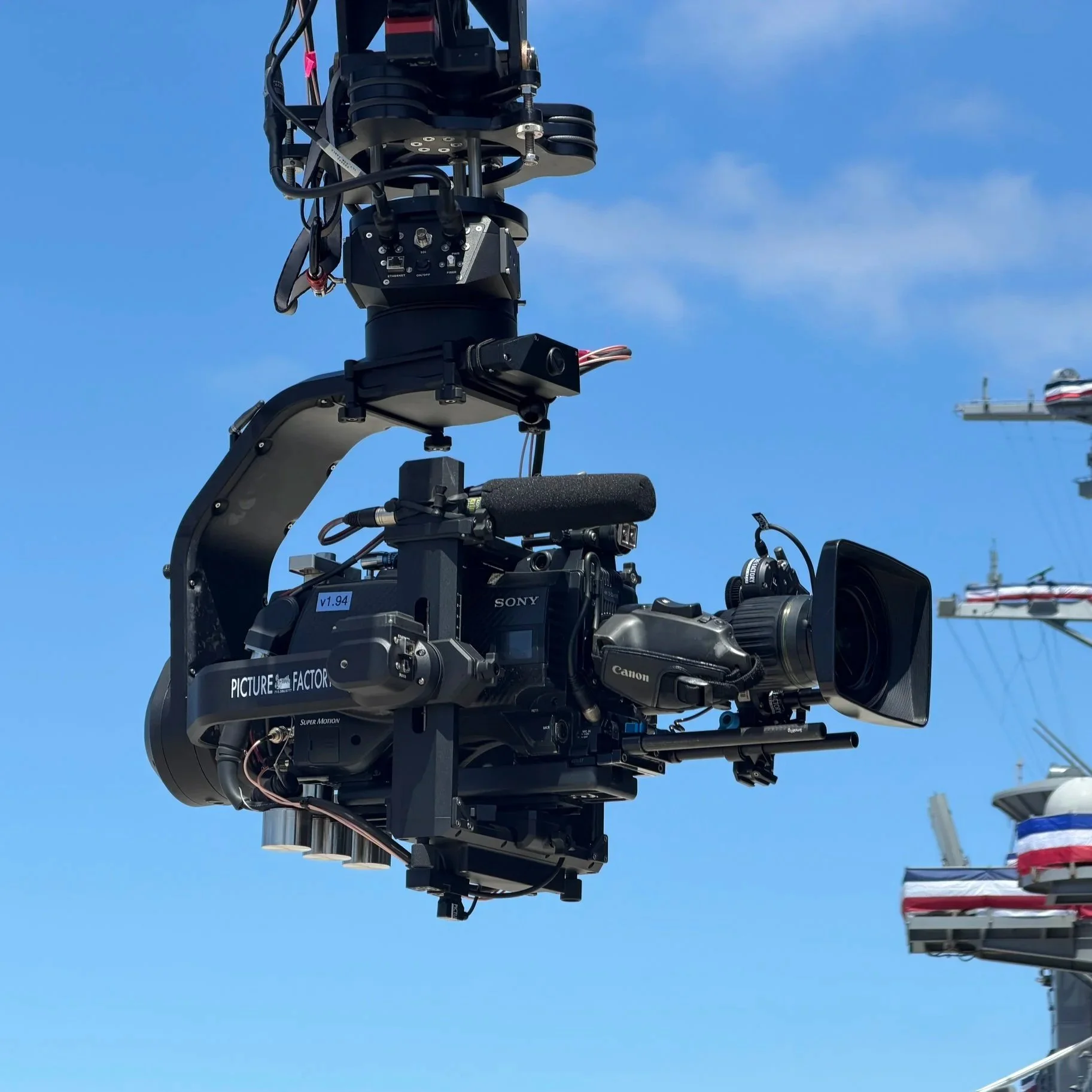

“We had the opportunity to take LTB to San Diego for NASCAR and put it on a 70ft MovieBird. We ran a full size broadcast package and it performed without issue running 12 hours a day. We set a preset tune and never had to touch it again.”
Expanded I/O for seamless integration

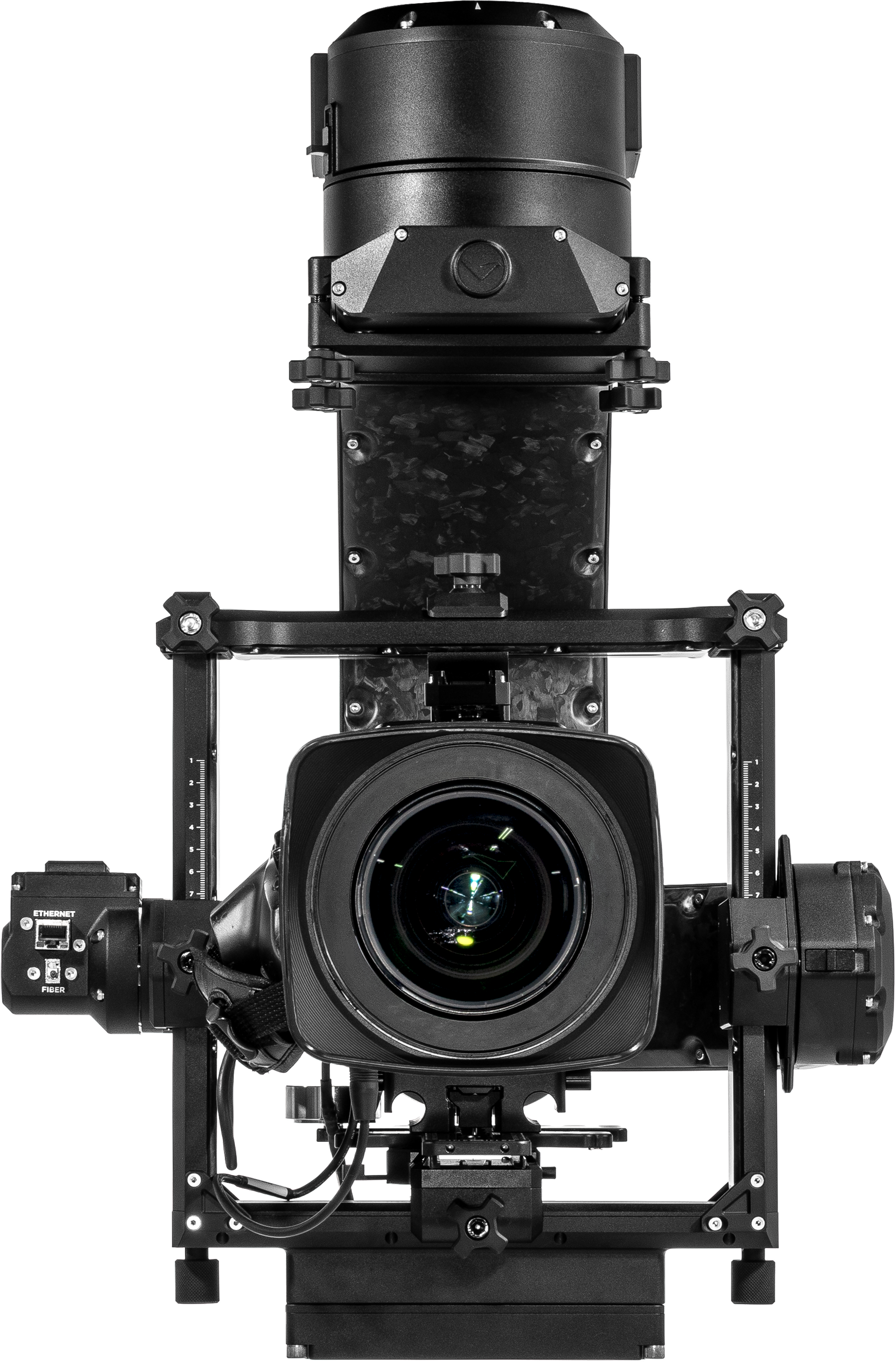

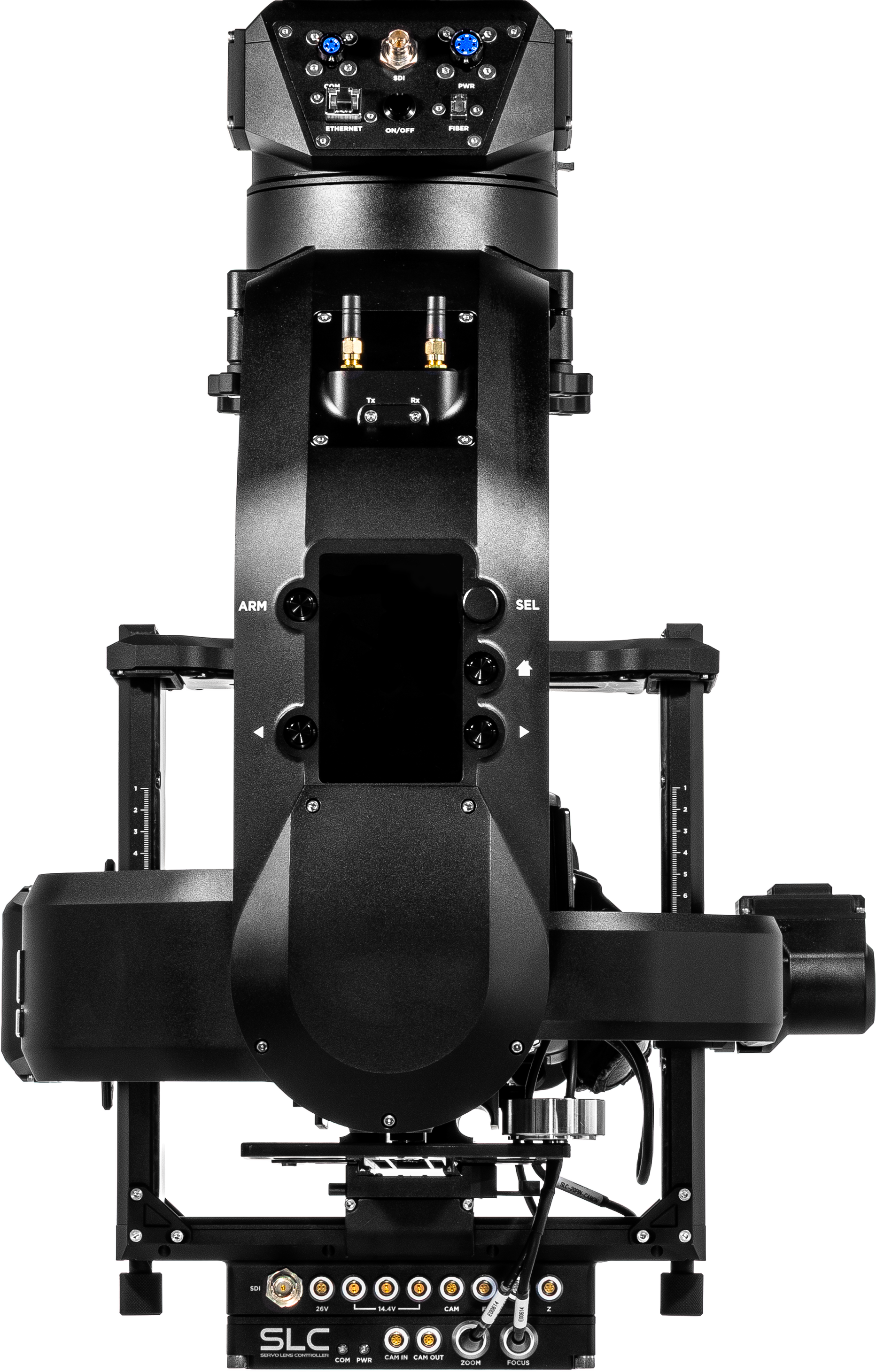

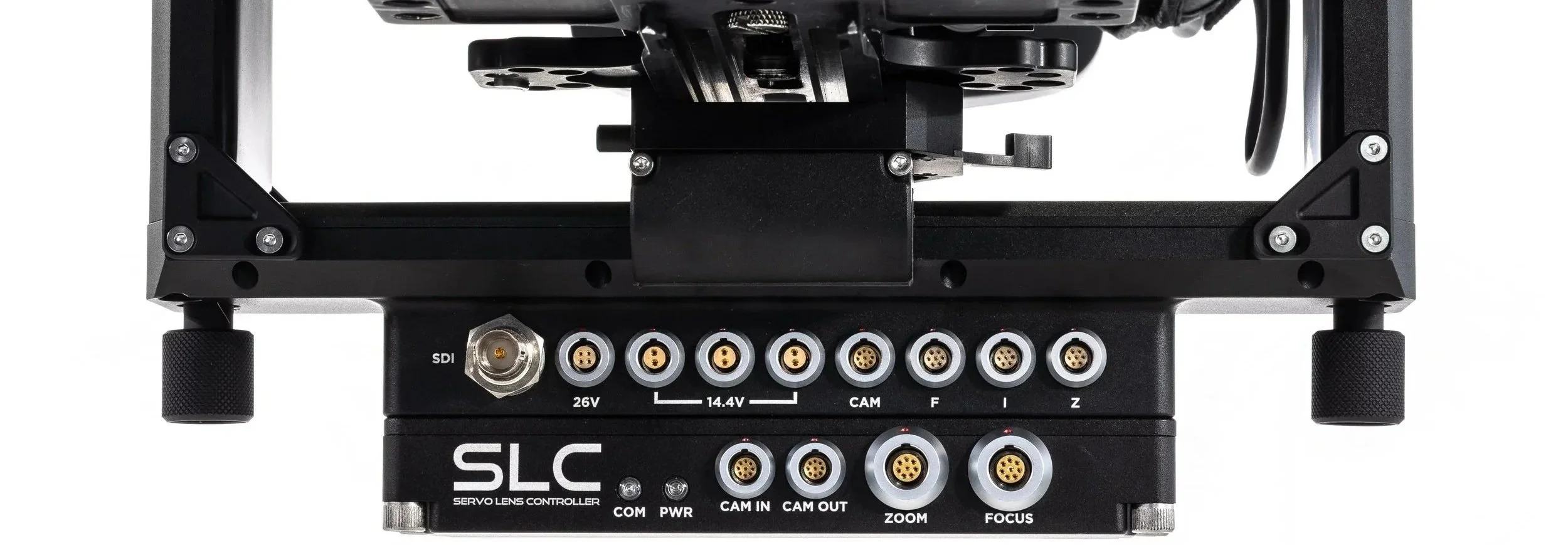

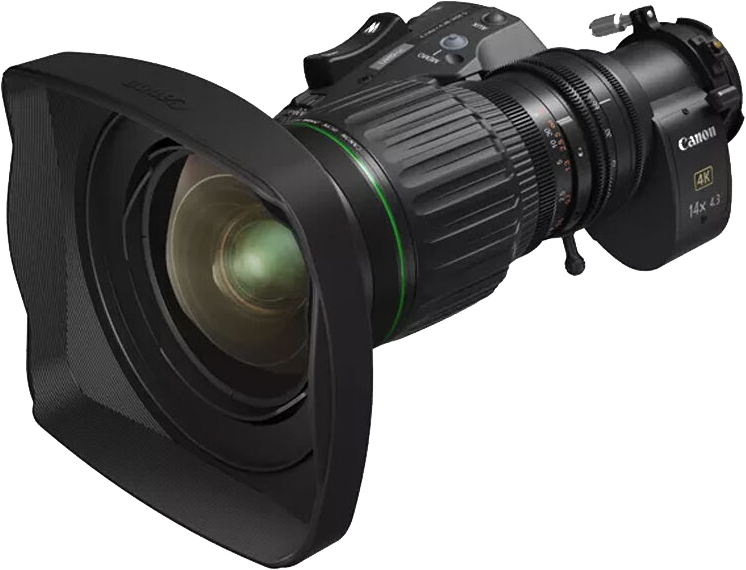

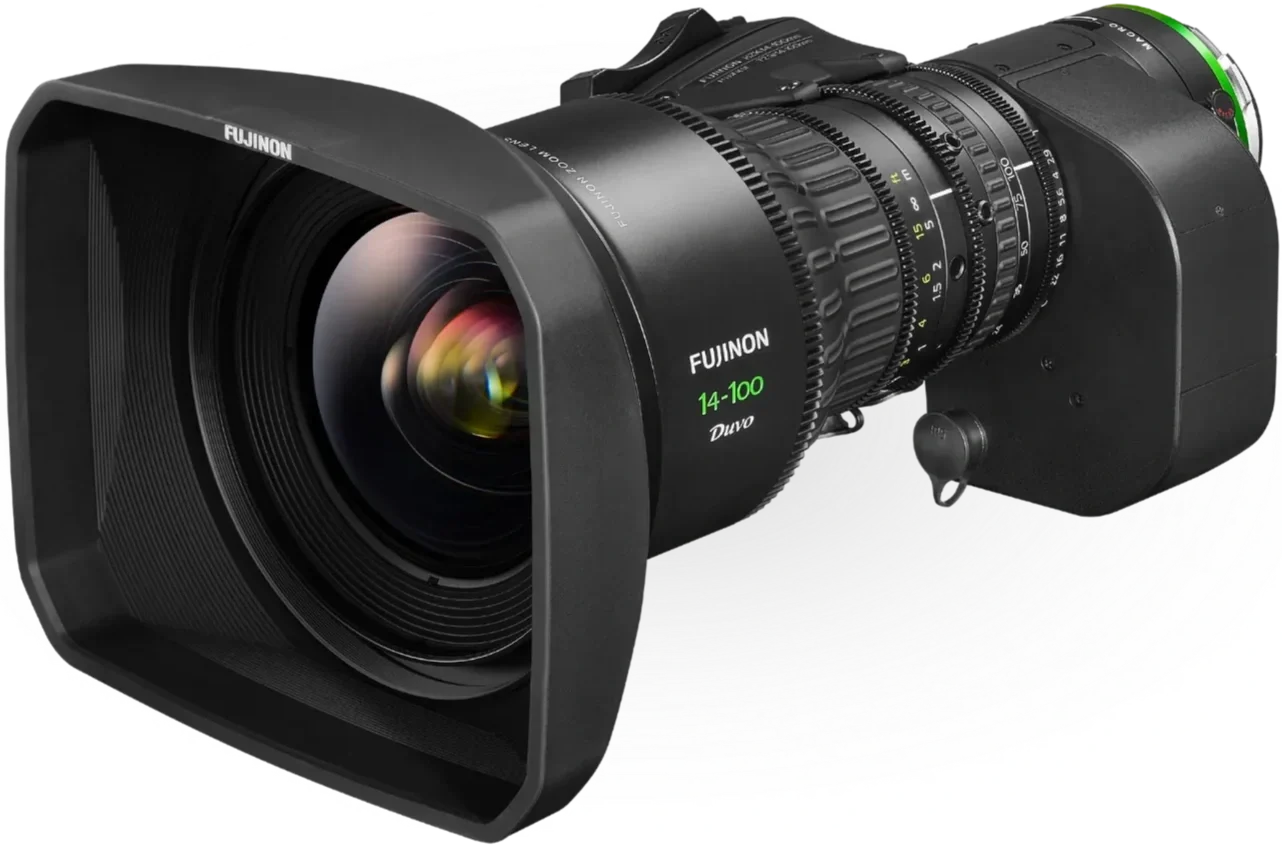

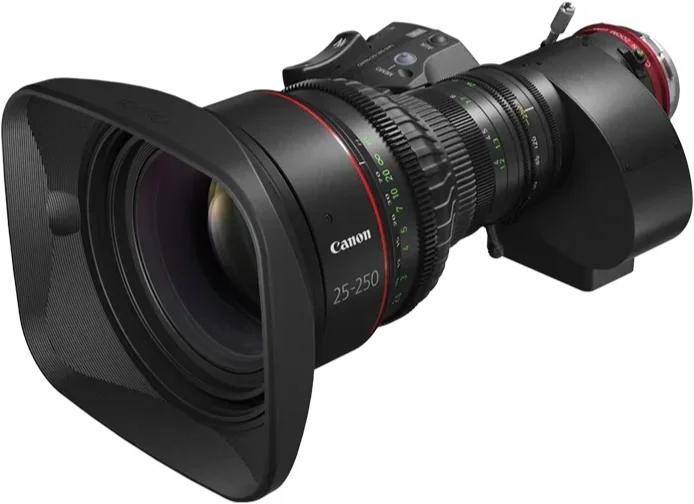

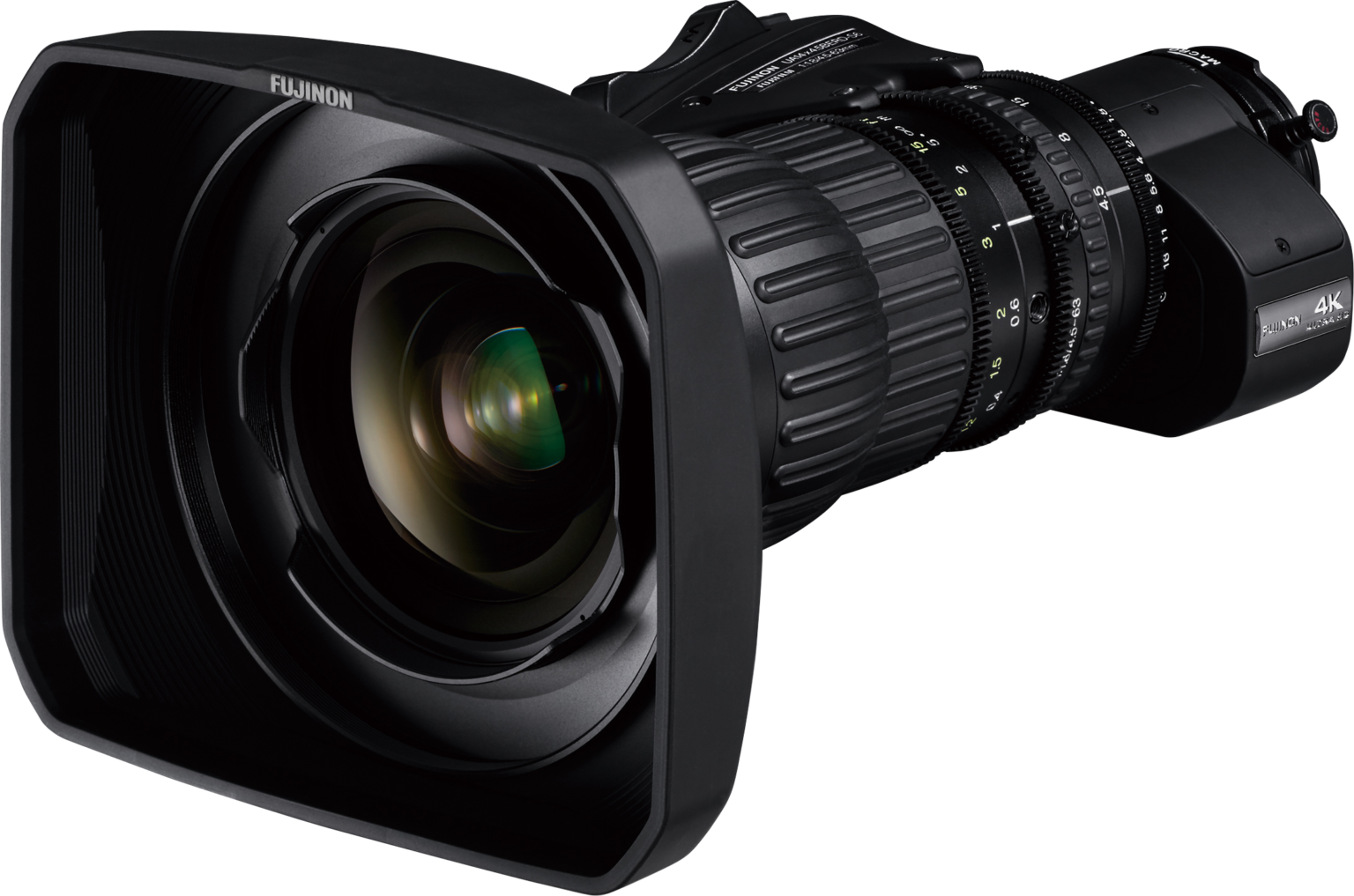

LTB is paired with our new SLC (Servo Lens Controller) accessory for native control of Canon and Fujinon servo zoom lenses.
The existing built-in 3-channel motor driver is retained for controlling external lens motors from Preston, Heden, Redrock and MotoCrane. Power is supplied to camera and accessories via 3x 14.4V and 1x 26V ports each delivering 150W (300W total) along with 3G-SDI and CAM control.

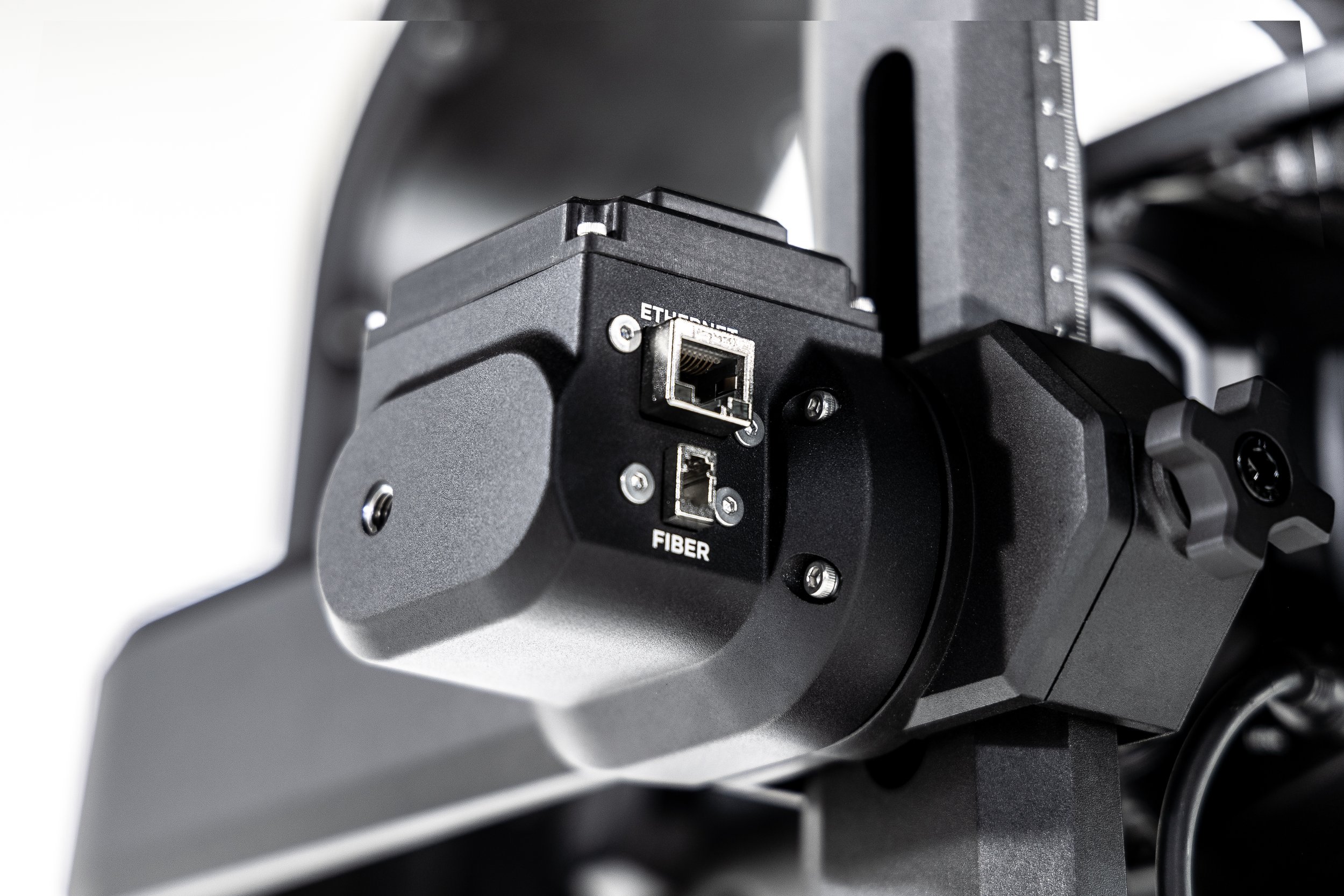

Ethernet + Fiber passthrough

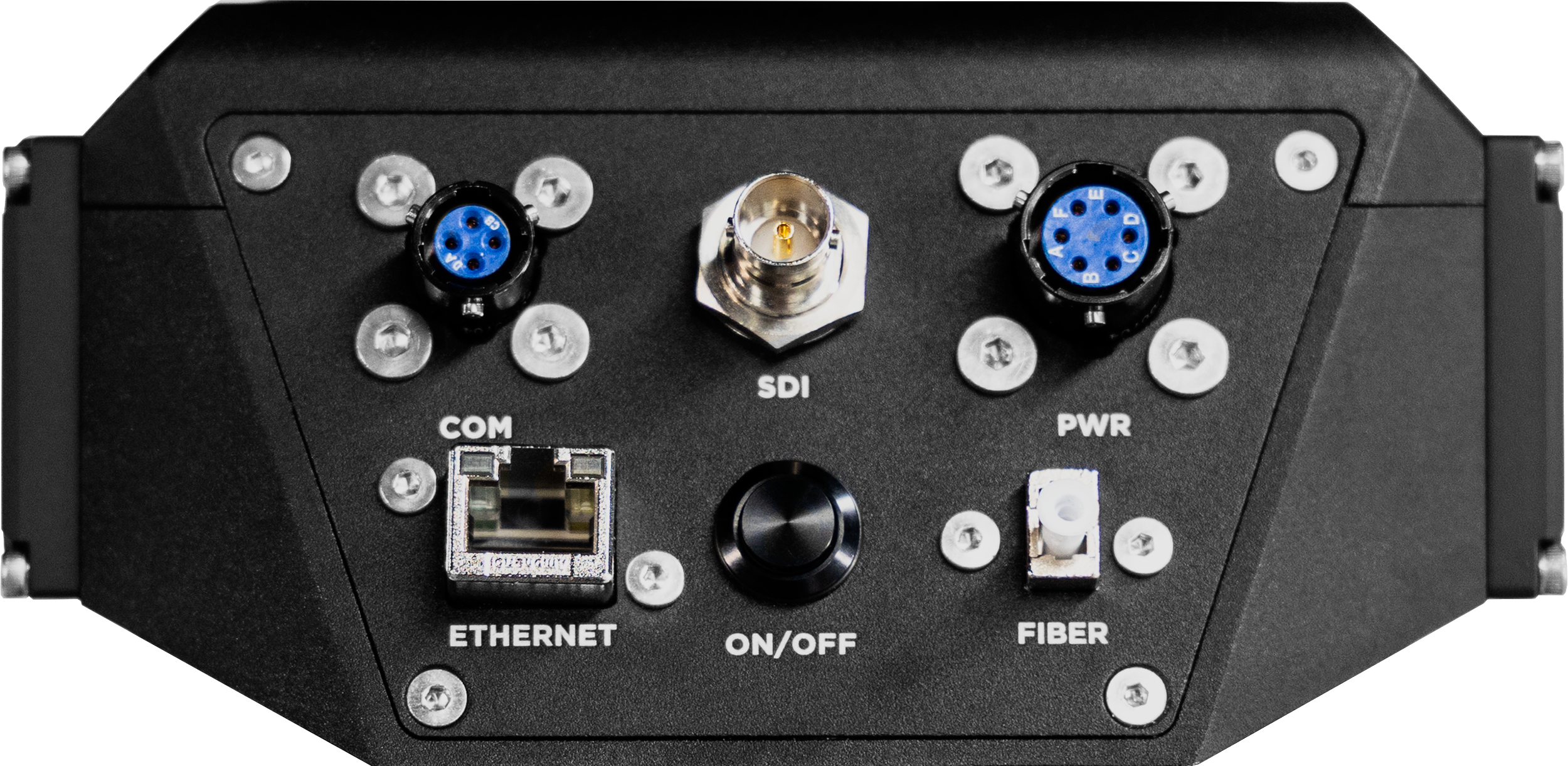

The LTB pan slipring has been expanded with additional channels for Ethernet (100Mbit) and Fiber allowing for seamless integration of IP-based accessories and workflows. This is in addition to the existing 3G-SDI passthrough for video. Power and Com connections are identical to LT.
Lightweight & Strong
Payload capacity of 40lbs/18kg, while weighing just 18lbs/8kg.

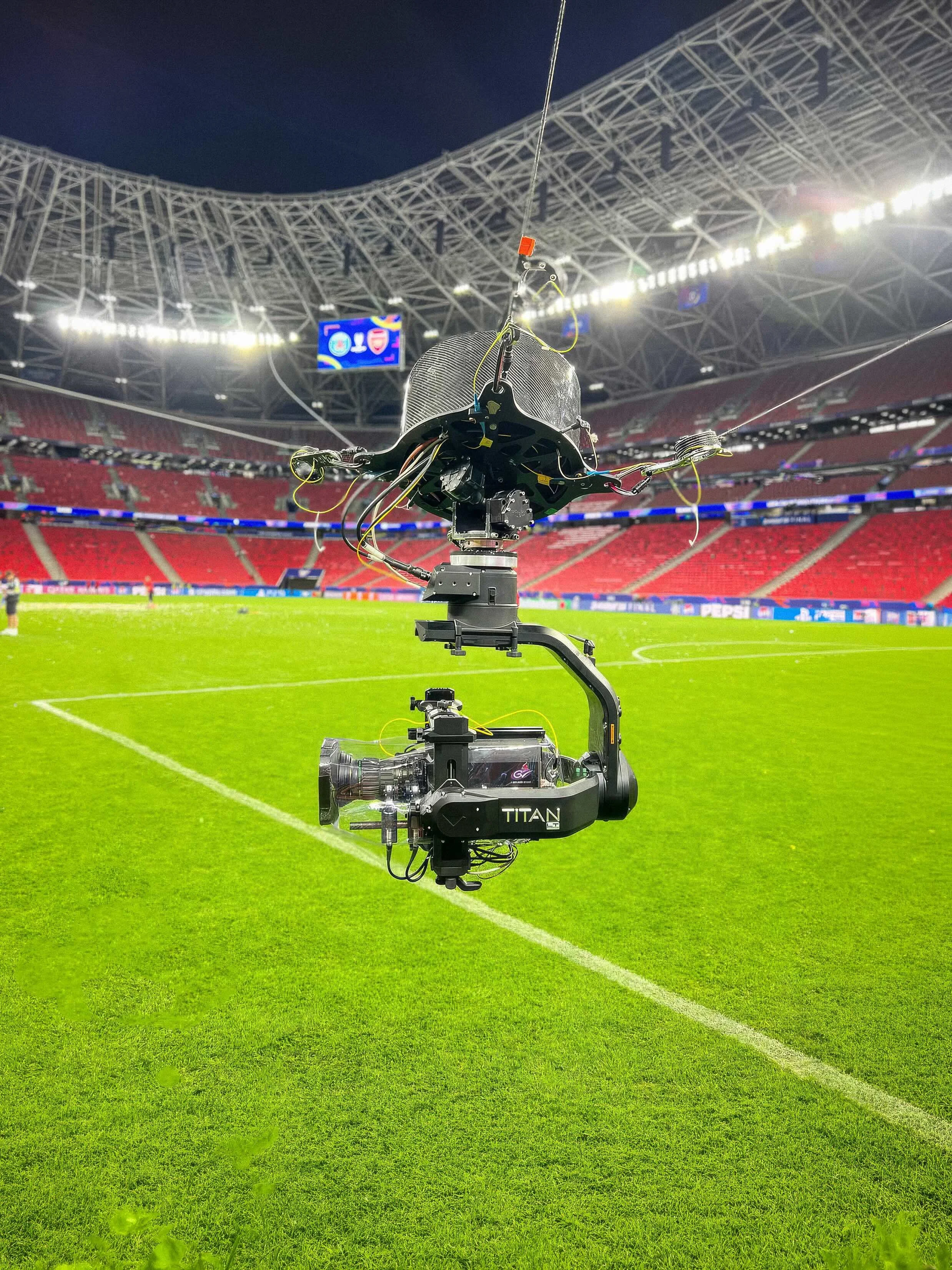

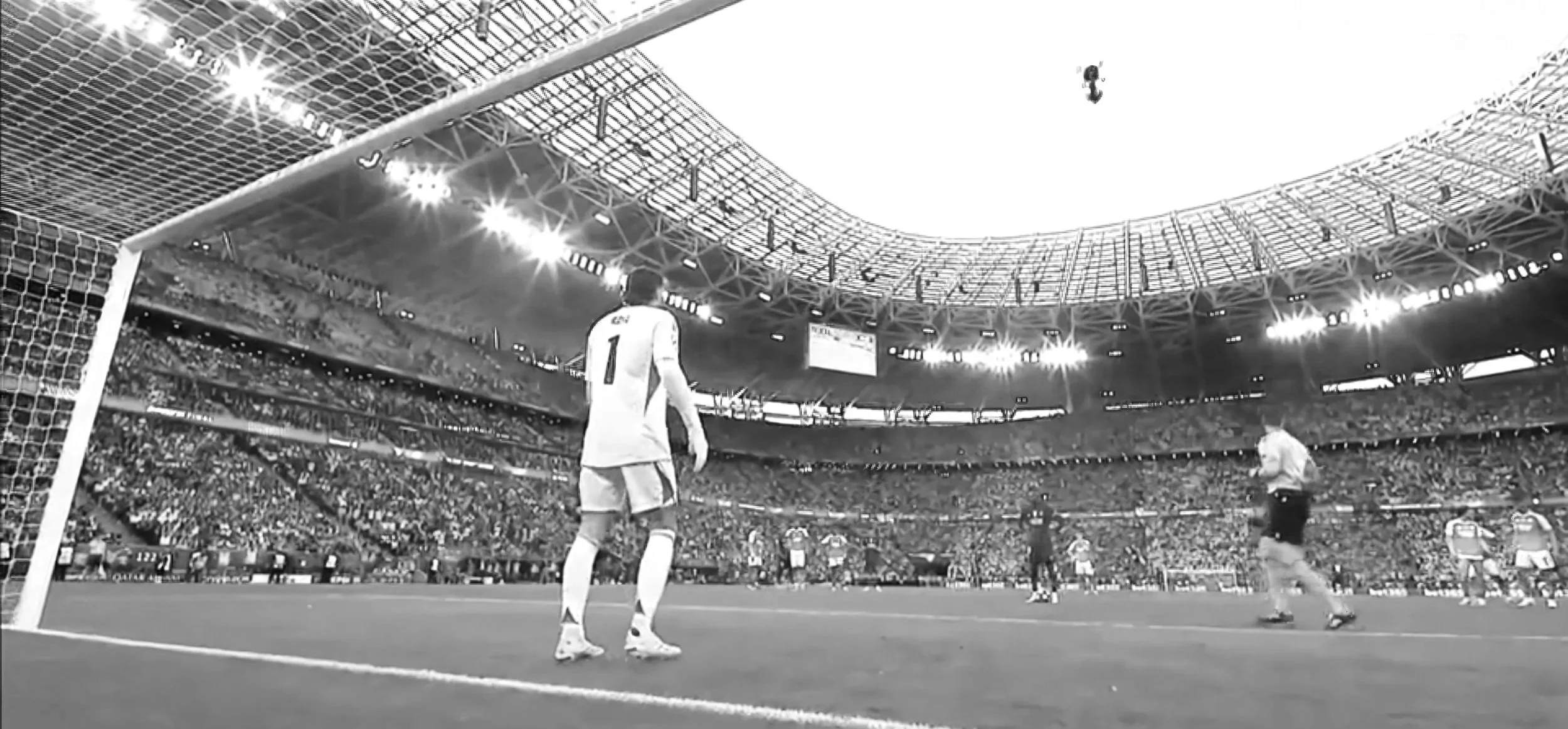

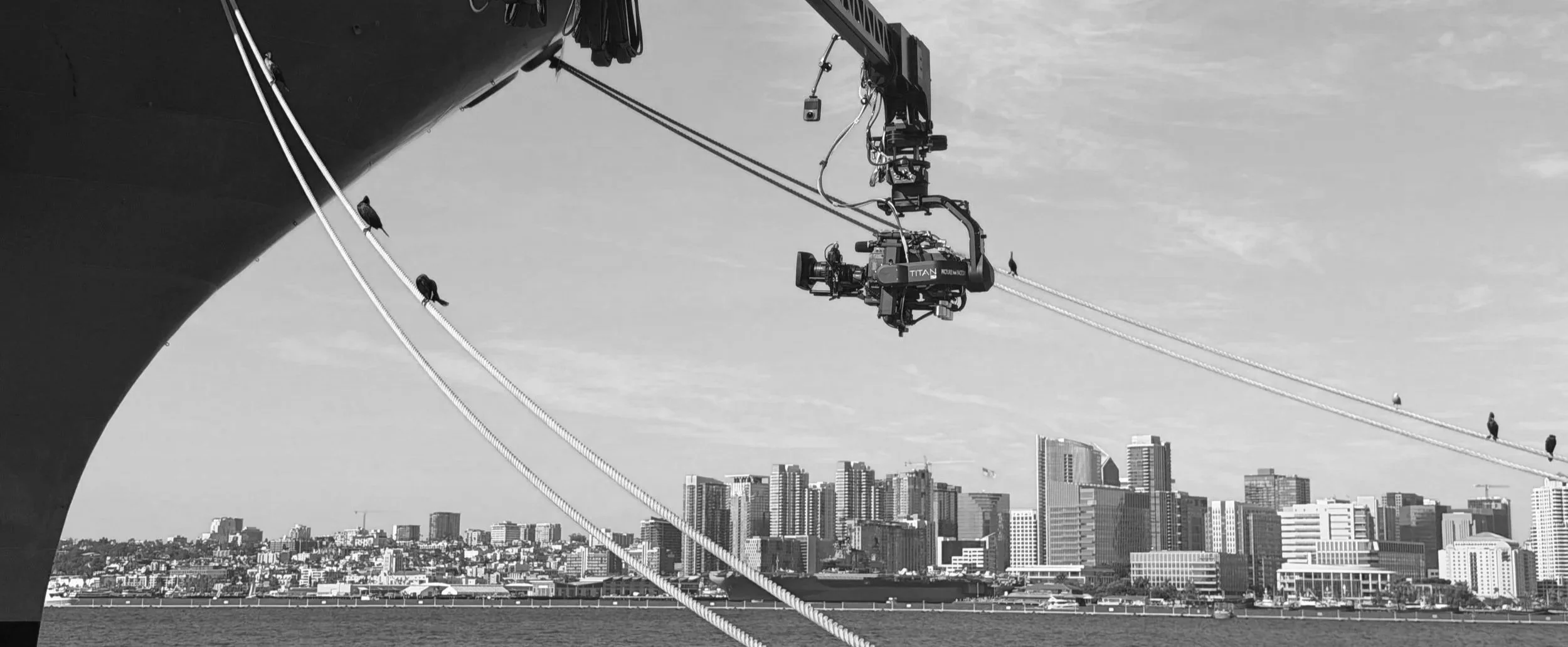

Perfect for 1D & 3D Cablecam, Railcam, Robotic Dolly, Tracking Vehicle, Jimmy Jib, TechnoCrane, and more. LTB made it’s debut shooting the UEFA Champion’s League.

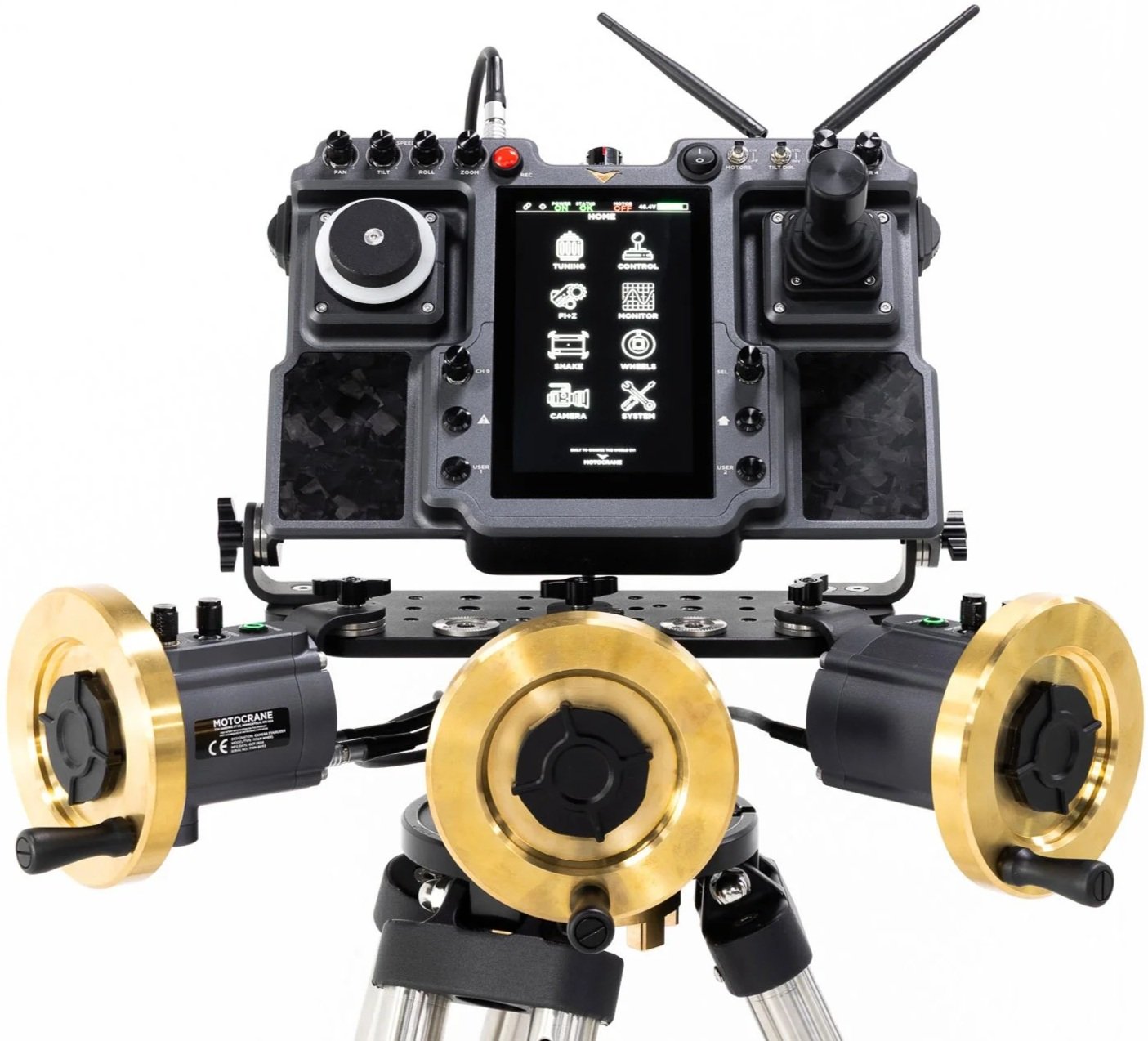

The TITAN controller is the crown jewel of the LTB experience. Machined from durable 6061 aluminum- it is built for battle. The intuitive touchscreen user interface is packed with features for operating exactly how you want.
Operators can install single, dual, or 3-axis joystick(s) and/or the Focus wheel on the right or left-hand side as desired. Choose between the freedom of wireless operating (standard 2.4Ghz or LongWave 900Mhz) or the reliability of hardwired control in busy RF environments.
Compact & Powerful

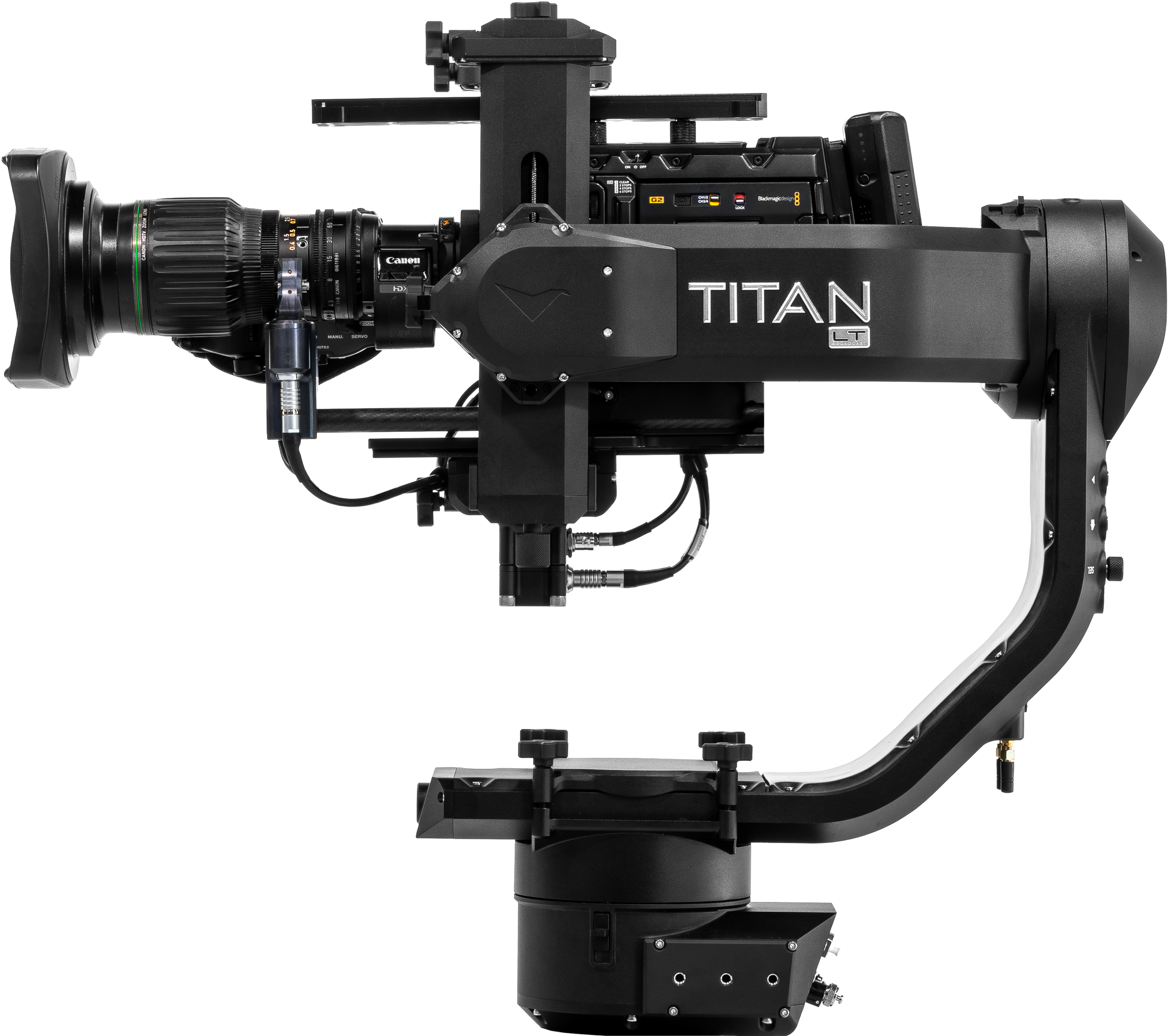

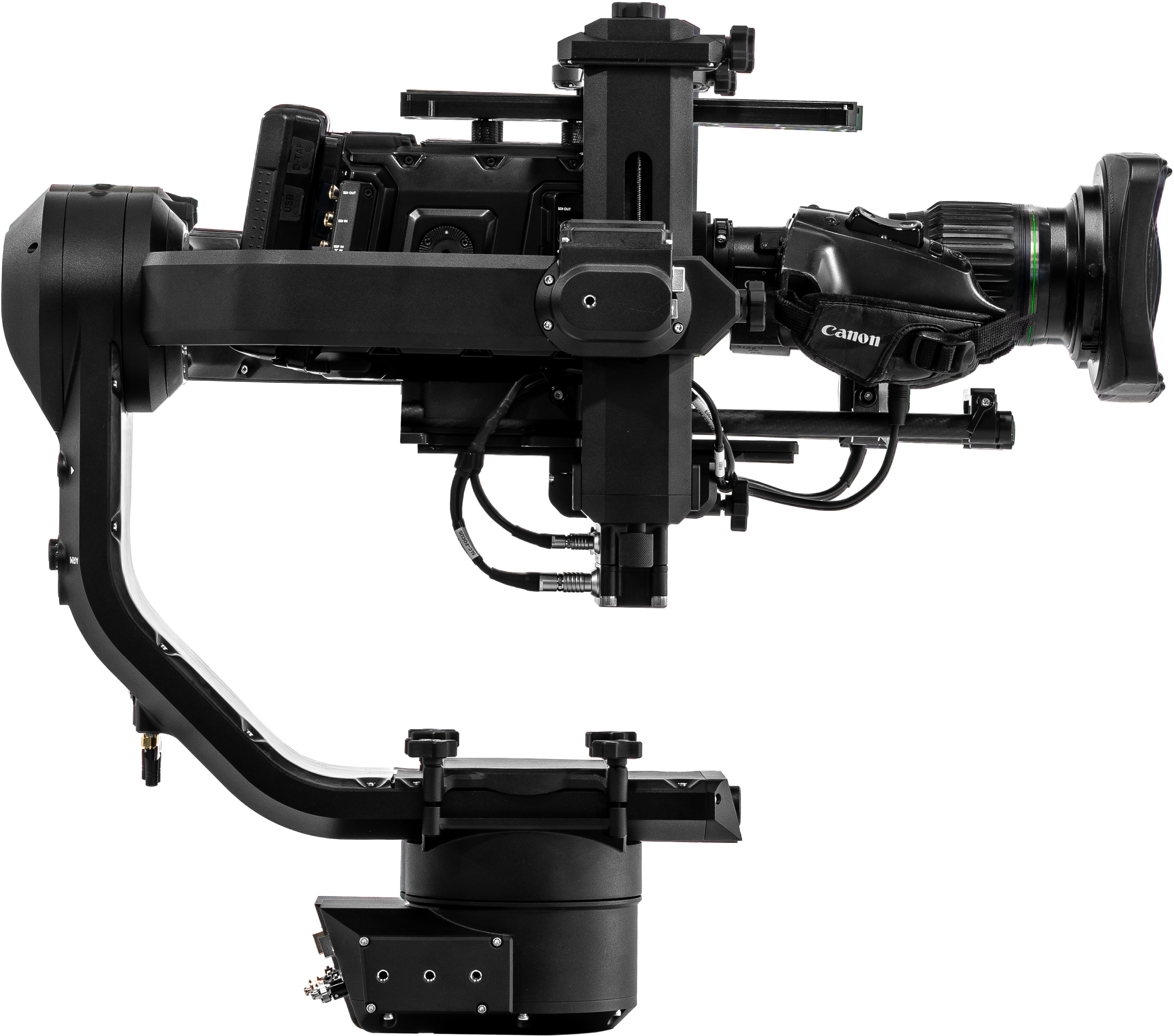

Despite its small size, LTB can handle a full-size broadcast camera, with plenty of motor torque to maintain control responsiveness. Enjoy simple payload construction and balancing, with handy features like axis locks on all 3 axes (in 90º increments). LTB is distinguished by it’s black anodized finish for low-profile presence amongst live audiences.
World-class Versatility

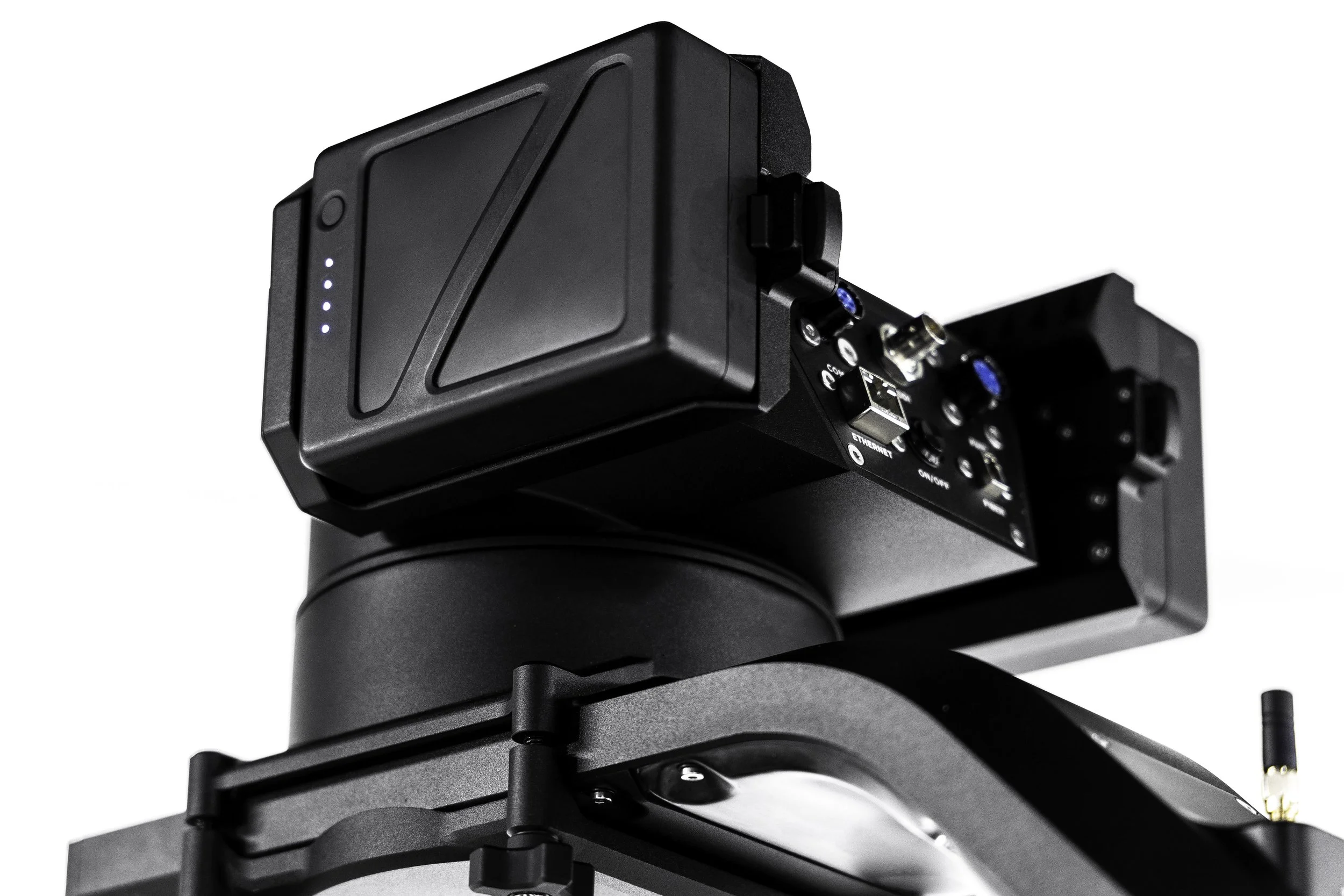

Modern tools must be adapt to a wide variety of conditions and applications. Where other manufacturers gate-keep, we encourage third-party support and integration whenever possible. For example, Our DJI TB50 Battery integration makes it easy for Ronin 2 users to migrate their existing battery workflow.
At MotoCrane, we are constantly developing new accessories, expansions, integration and features to continuously strengthen the TITAN stabilized ecosystem.
Want to Trade Up?
MotoCrane offers the best Trade Up programs in the world. If the expanded I/O of LTB is beneficial to your workflow, send us an email and we’ll get started on an LT Trade Up that works best for you.
LTB Technical Specifications
Mechanical
Construction: 6061-T6 Aluminum chassis
Maximum operational speed: 130+mph
Max Pan motor torque: 10Nm
Max Pan speed: 360º/sec
Maximum Payload Capacity: 40lbs/18kg
Dry Weight: 18lbs/8.1kg
Weather rating: IP65 (water resistant)
Temperature rating: -30ºF - 120ºF
Gimbal Mounting: Mitchell mount adapter, LT Quick Disconnect
Payload mounting: DJI R2 Dovetail/Baseplate

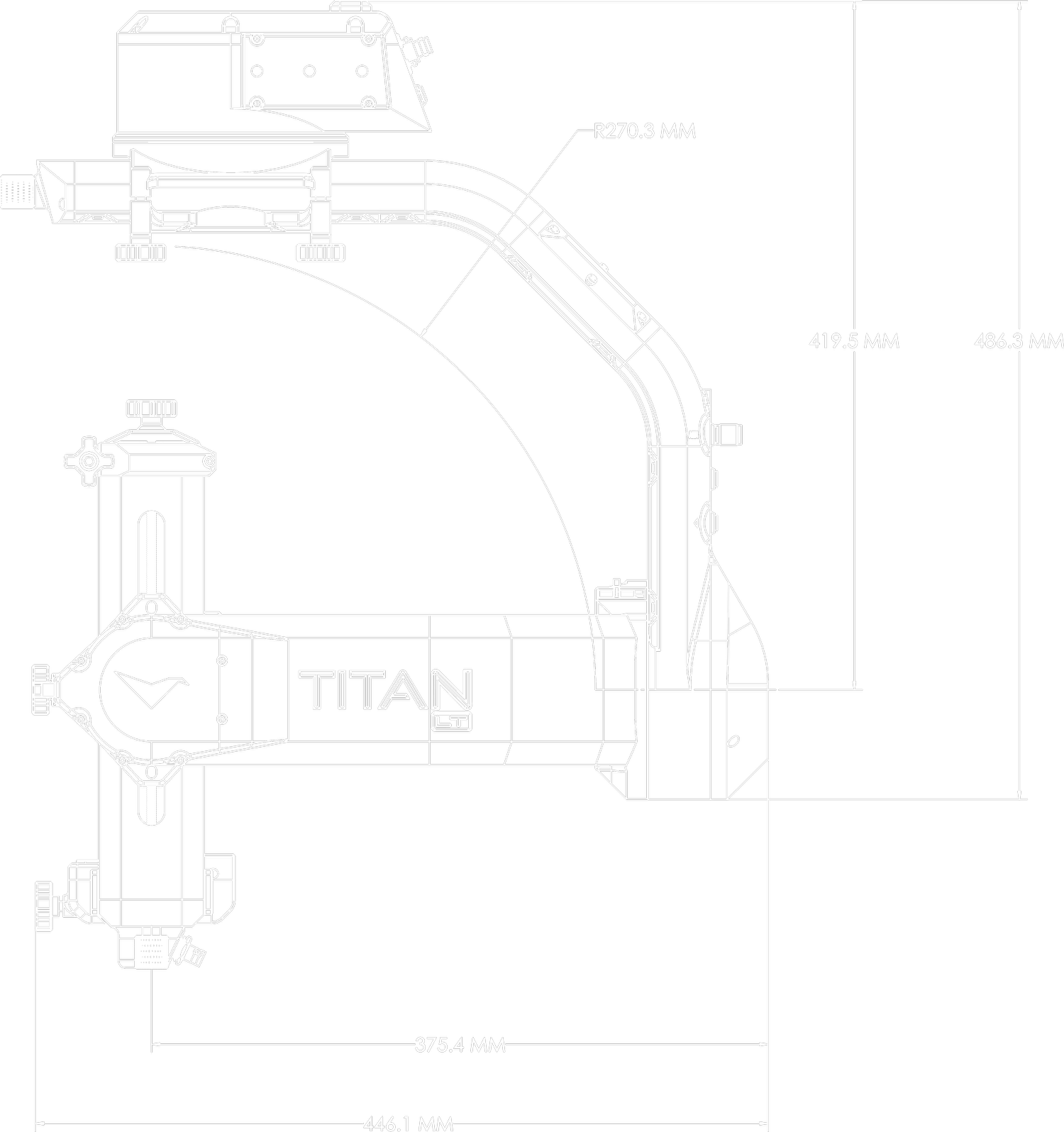

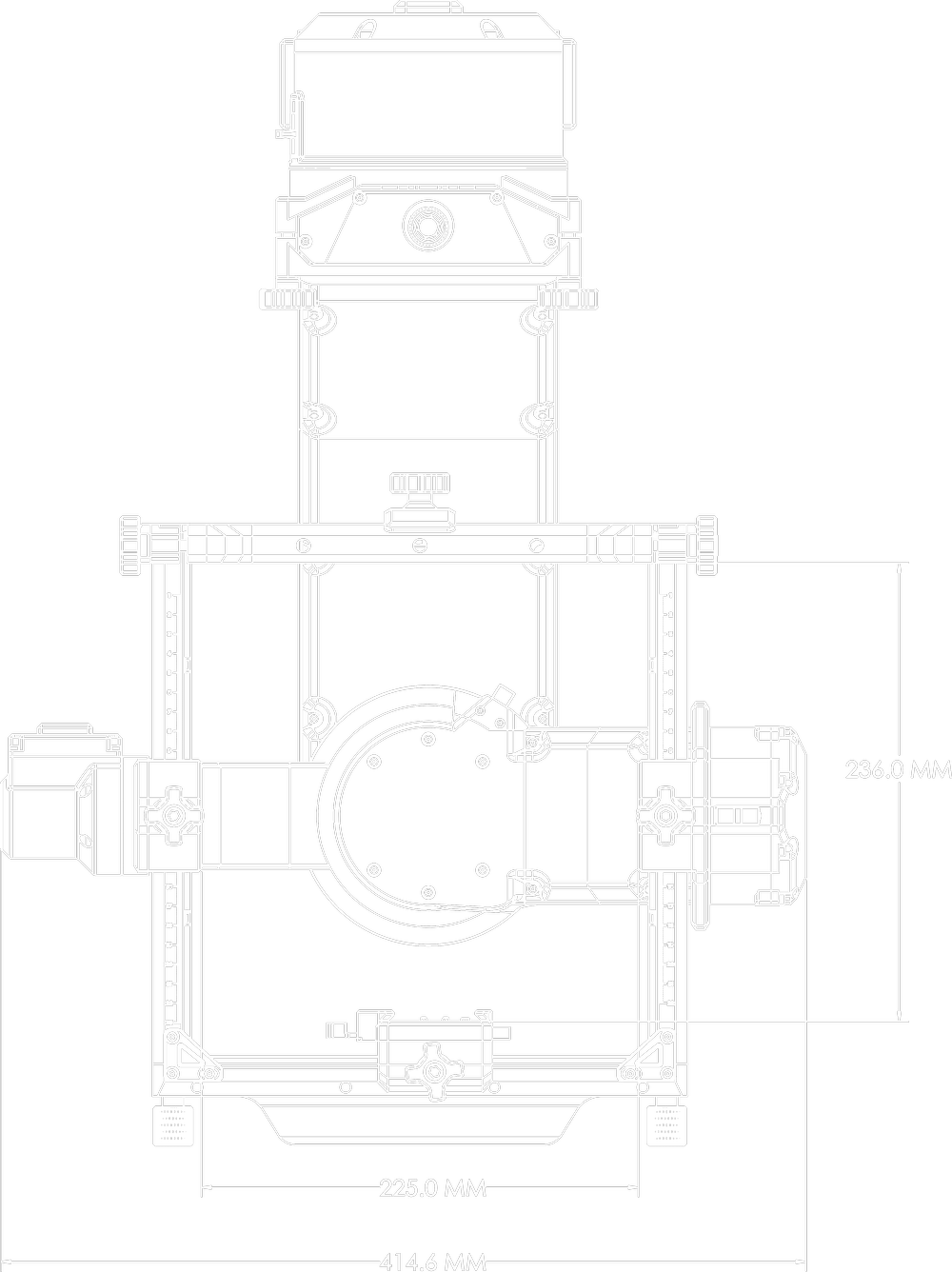

Camera build volume: 270mm (L) x 225mm (W) x 236mm* (H)
*286mm height with 50mm Cage Extension accessory
Electrical
System Voltage: 48V (42-53VDC)
Comms: CAN-BUS, hardwired + 2.4Ghz wireless (900Mhz w/ LongWave Wireless)
Power output: 3x 14.4V 2-Pin LEMO (125W) + 1x 26V (125W), 250W combined
Lens Driver: 3-channel, digital 7-pin LEMO, Canon + Fujinon w/ SLC
